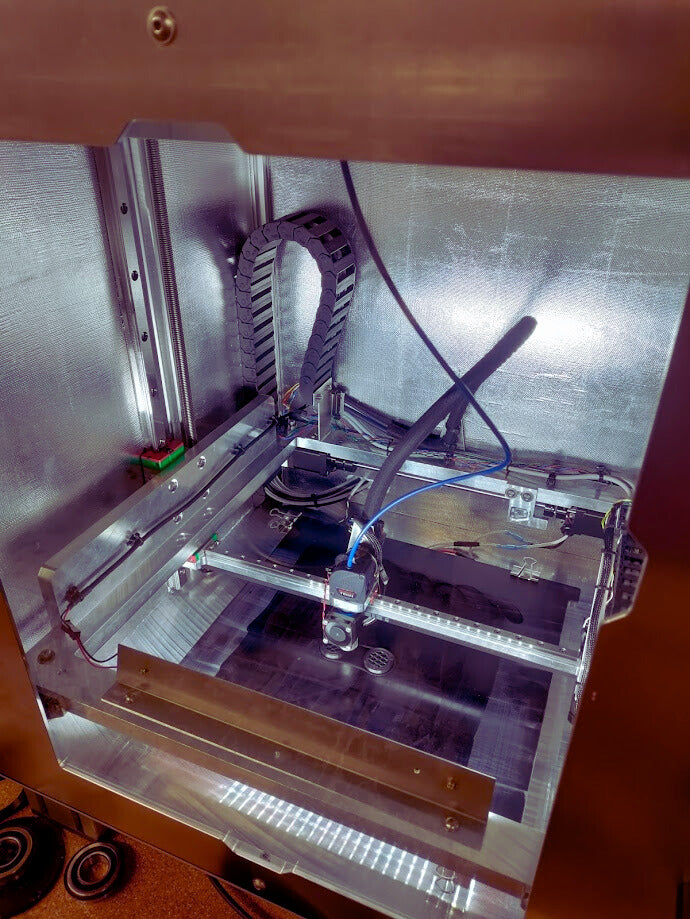

Logos Series - Base Model 3D Printer

*LAUNCH SPECIAL - FREE SHIPPING ON ALL ORDERS*

Anticipate 12-20 week lead time. Thank you for your patience!

Logos machines are a top contender in reliability and productivity. We source from American manufacturing companies for every possible segment, bringing a quality product to the end-user and empowering their manufacturing capabilities.

Base Model Specifications below:

Machine Properties
FDM/Fused Filament Fabrication Platform
Operational Footprint: 612x580x1200mm
Build Dimensions: 350x350x350mm
Layer Resolution: 0.08 to 0.22mm
Accuracy: +/- 0.12mm
Actively Heated Chamber up to 90°C
Ethernet Connectivity (Wifi Optional)

Tool Head
Dual Gear Direct Drive Extrusion System
High-Temp Cylindrical Hotend with Hi-Flow
Geometry
Z-Probe Homing
Max Extrusion Temp: 450°C
Nozzle: 0.5mm Hi-Flow Geometry Tungsten Carbide
Dried Compressed Air Layer Cooling
Filament Runout Detection

Build Platform
ATP-5 Vertically Cast Aluminum Tooling Plate
Factory Trammed - Kinematic Bed Mount
High-Temp Carbon Fiber Build Plate
Max Bed Temp: 180°C
Leveling Probe - Mesh Bed Generation

Filament Storage
Drying Temperature up to 90°C continuously
Rechargeable Activated Alumina Desiccant
1 KG spools - up to five
2.5 KG spools - up to three
(1) 10 KG spool
(1) 25KG spool

Materials
Open Materials Platform
PLA, PETG, ABS, ASA, TPU, Nylons, PC, PC
Blends, HIPS, PP, PPE-PS, PVDF, PPS, PPA, PSU,
Glass Reinforced Composites, Carbon Fiber
Reinforced Composites, and ESD safe materials

Power Requirements
110V AC, 50/60Hz
Must use 20A Rated Circuit and NEMA 5-20R
Receptacle
Nema 5-20P Plug (Provided with Unit)

Electronics
Powered by Duet3D Hardware
Shielded and Drained EMI Management System
High-Temp Stepper Motors
7 Inch Touch Screen Interface

Safety Measures
Thermal Runaway Detection
Physical Thermal Cut-Off Switches and Fuses
UL Listed Components
Emergency Stop
Flame Retardant Insulation
All Grounds are tested for continuity to the
power plug’s ground pin before leaving the
facility.
